BGA300
Introduction
BGA300 is an indoor bluetooth gateway with WIFI and Ethernet as backhaul.

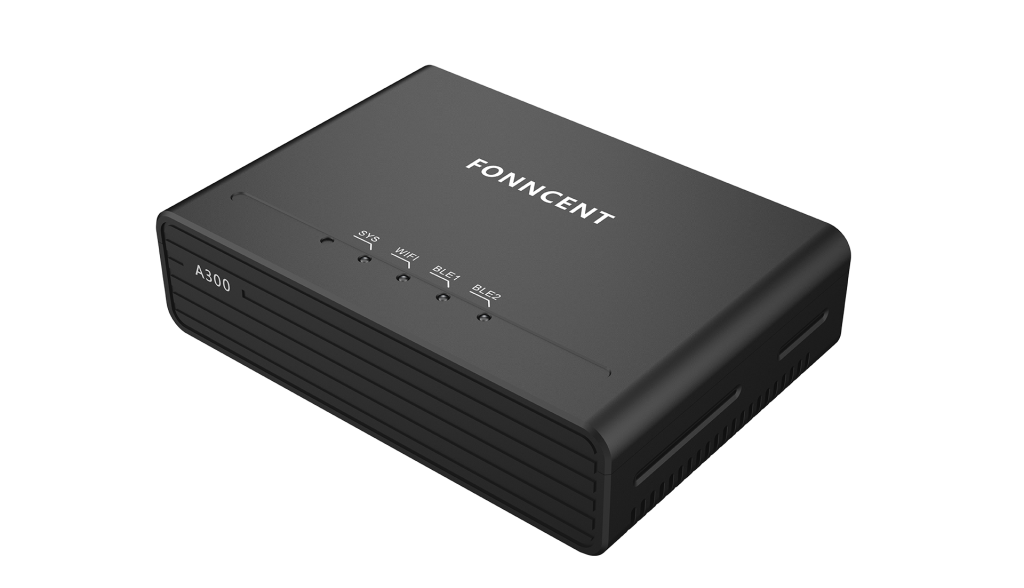

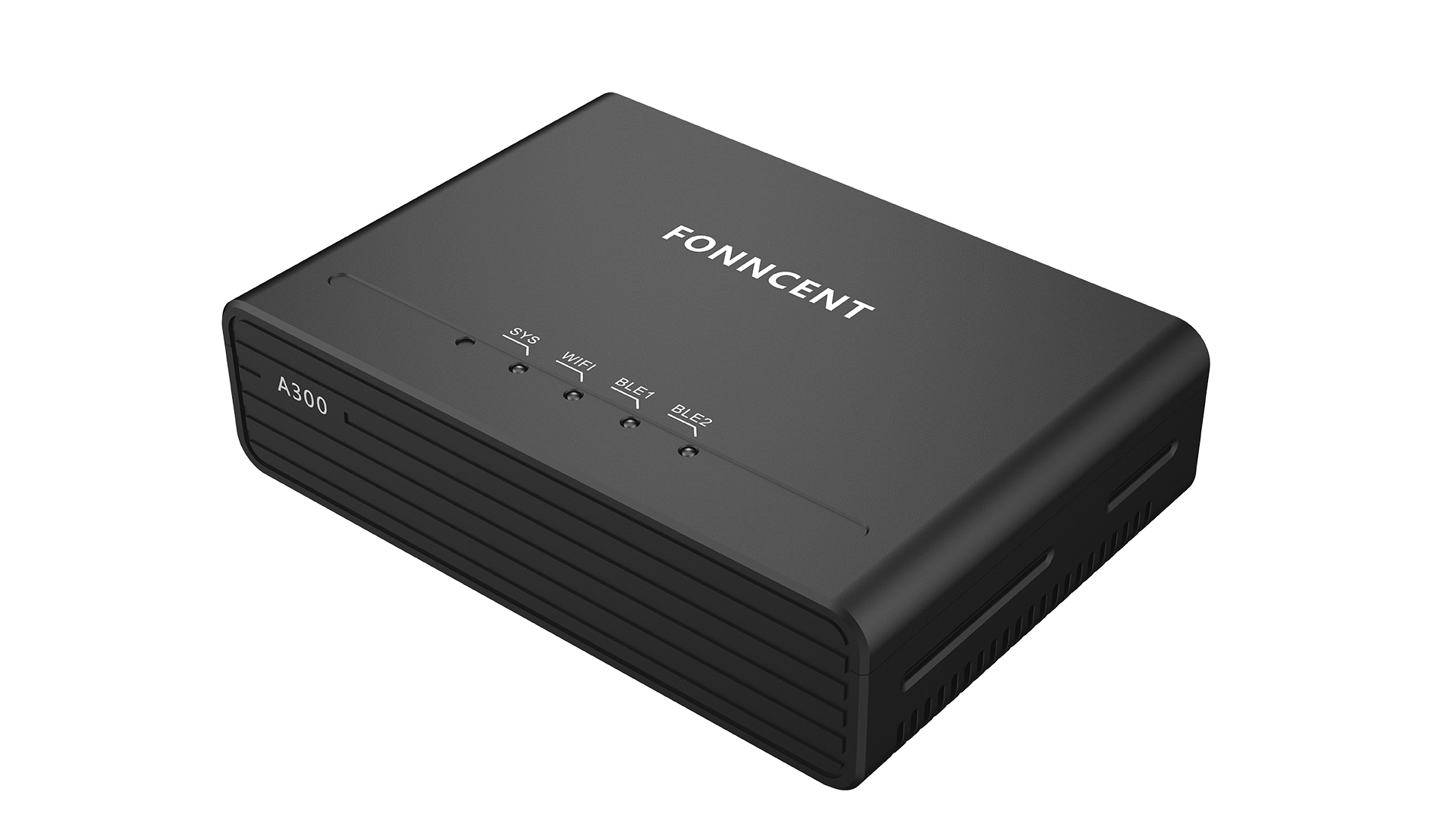

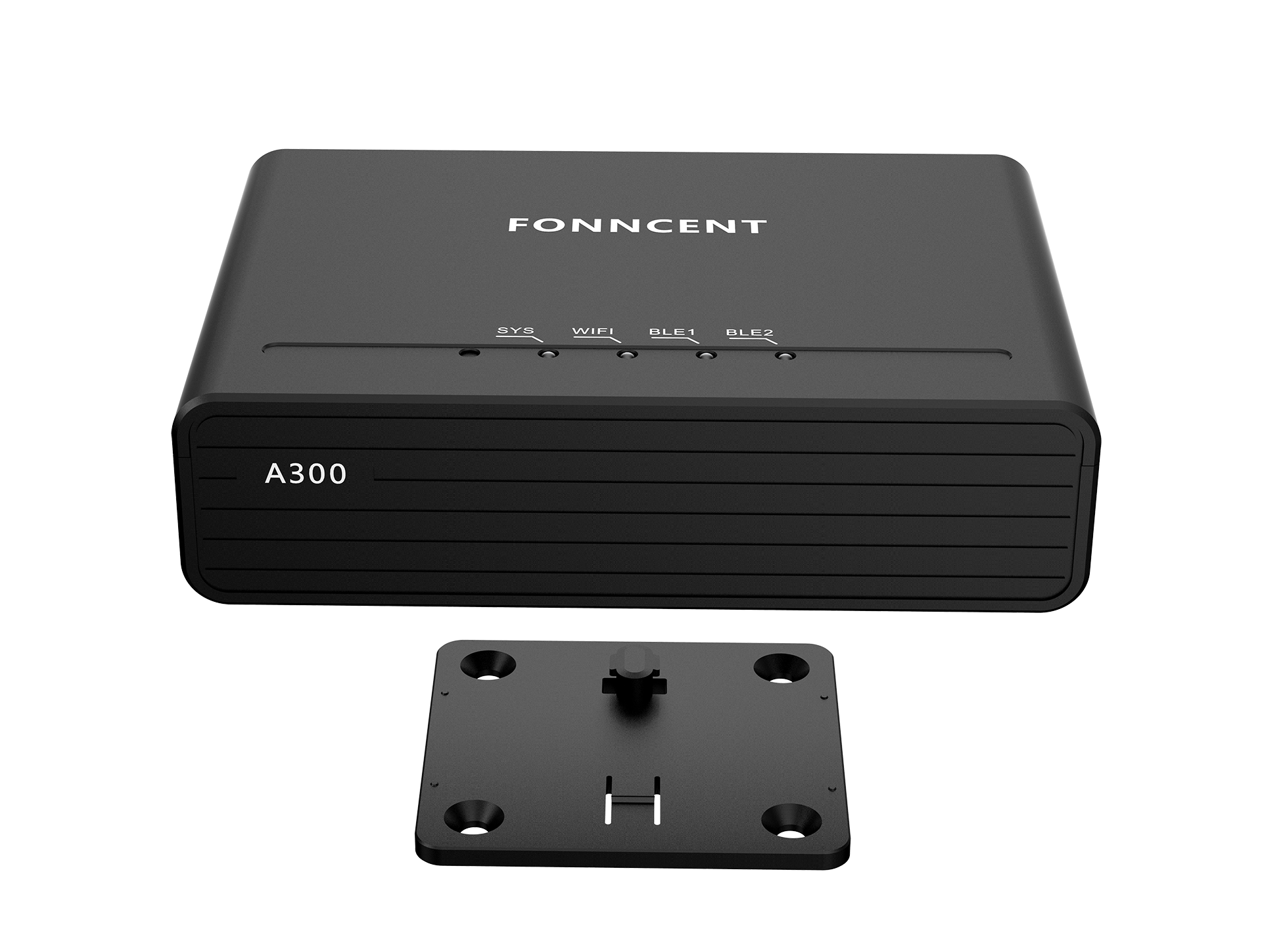

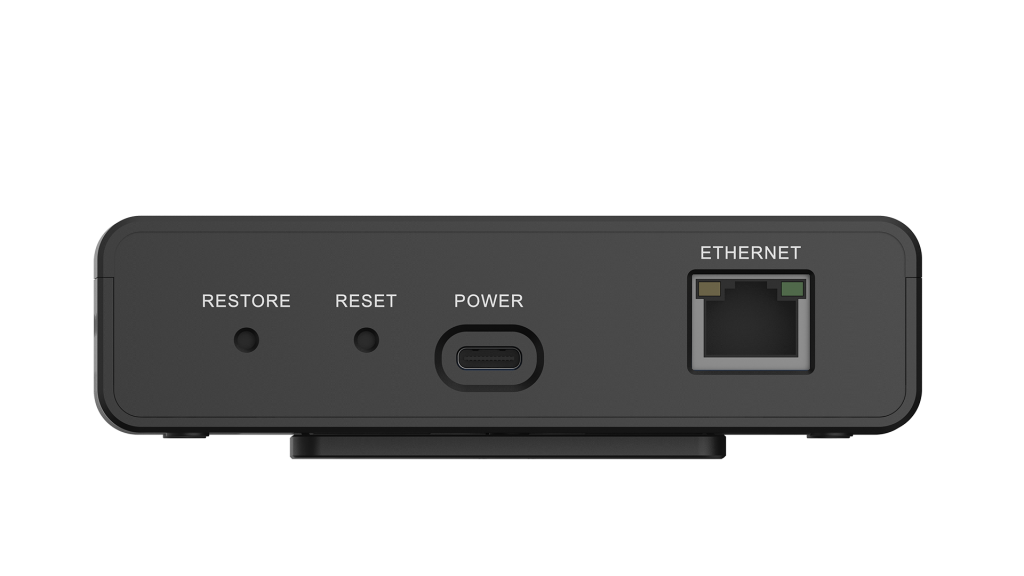

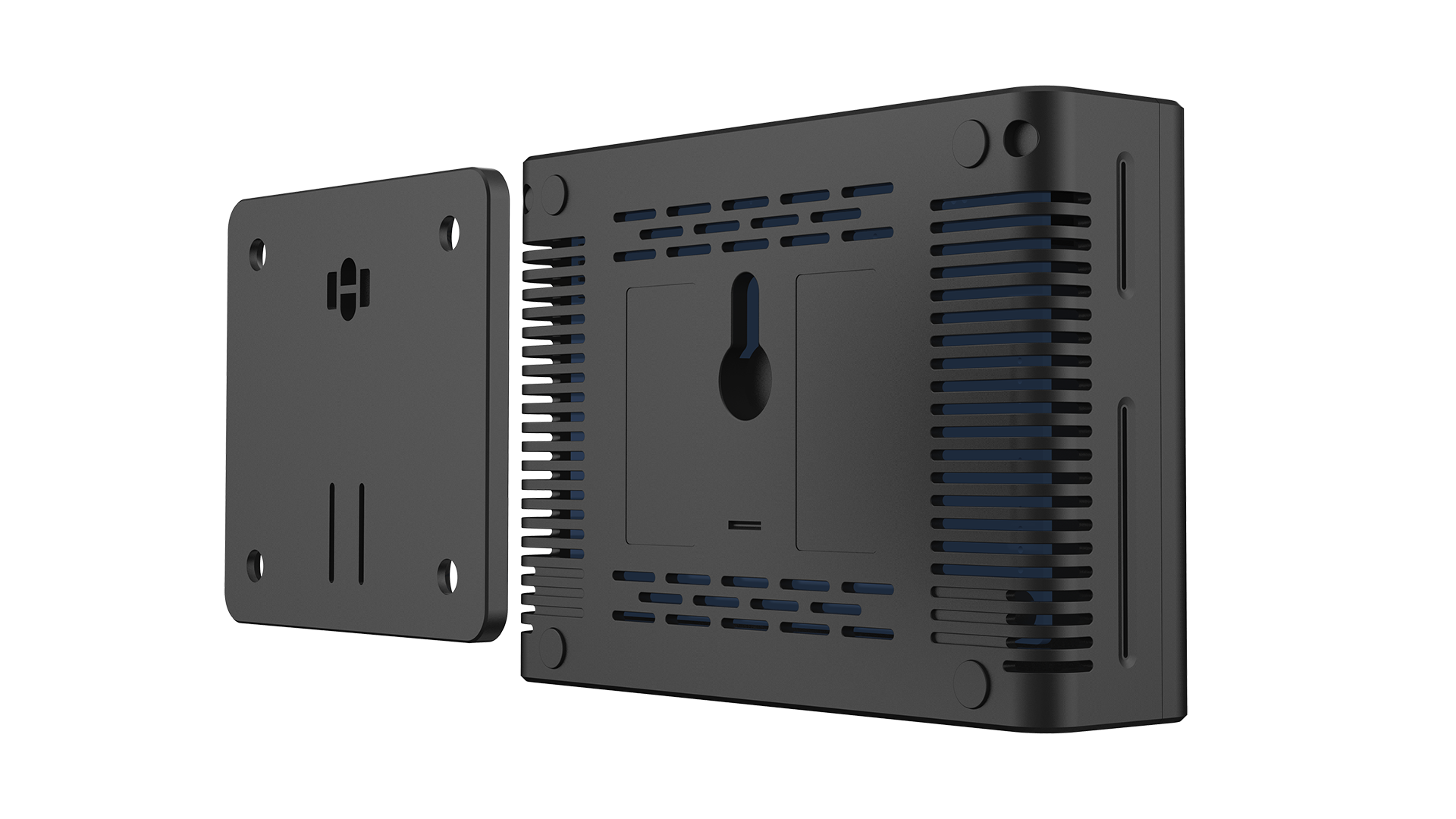

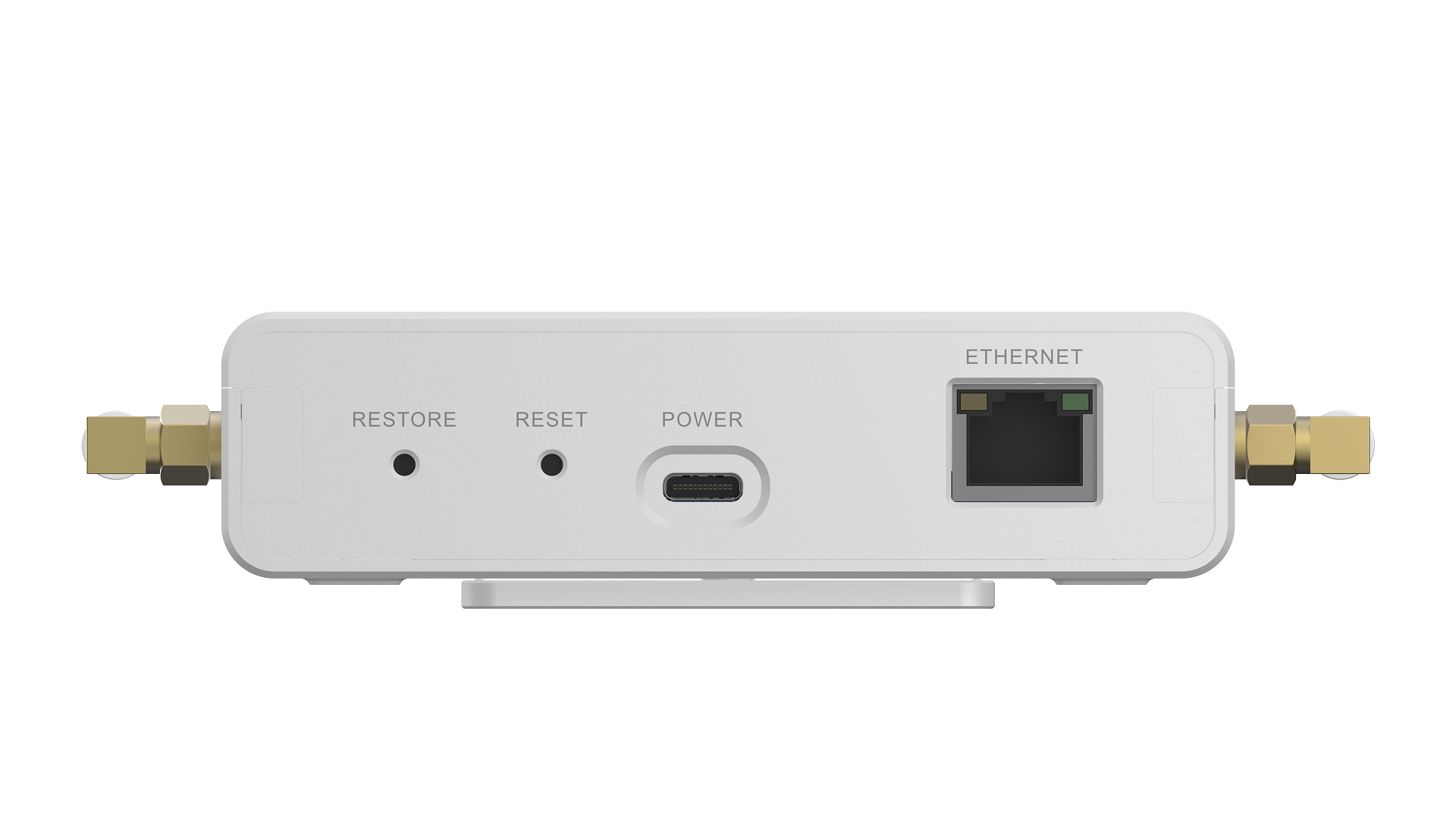

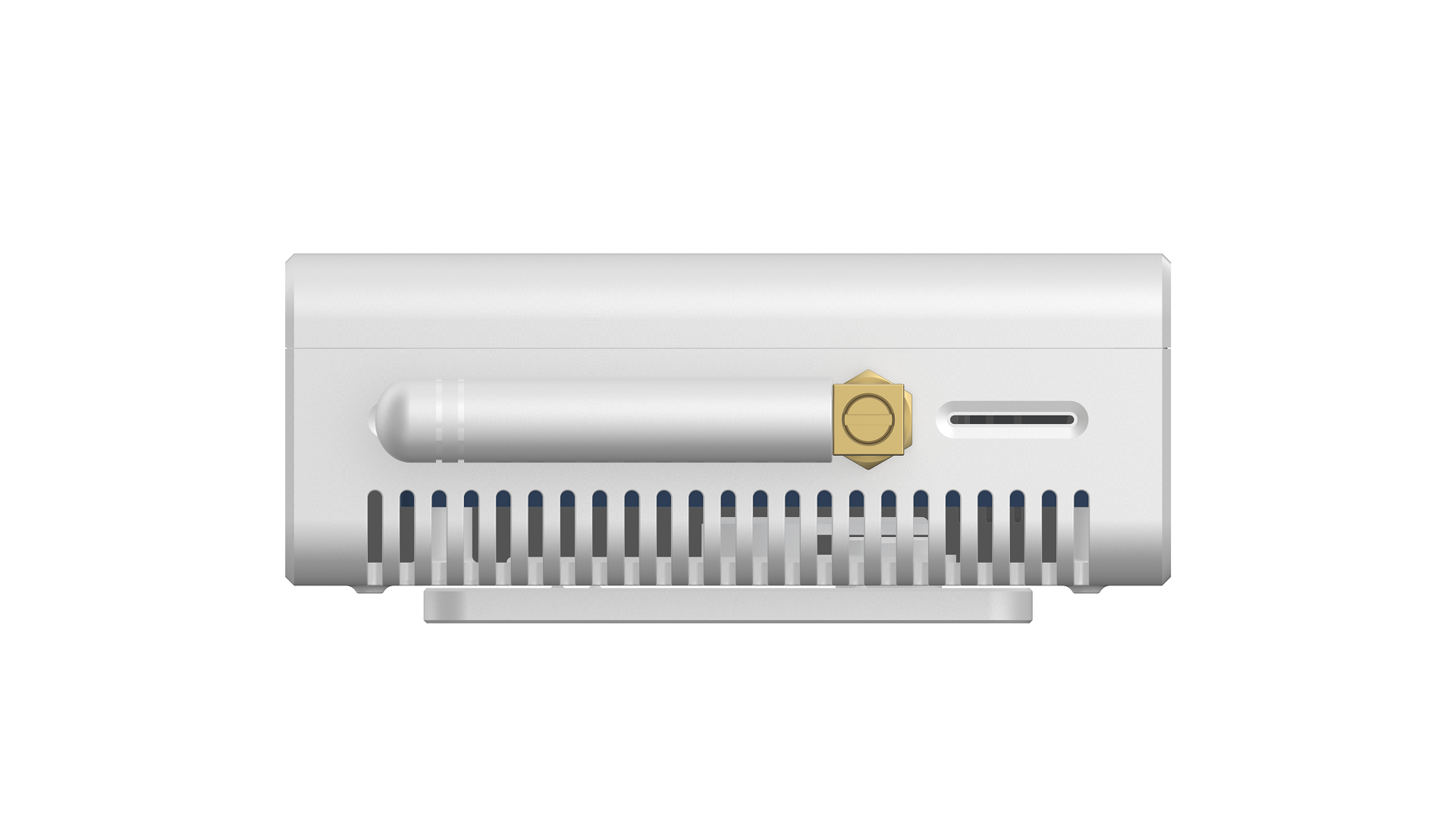

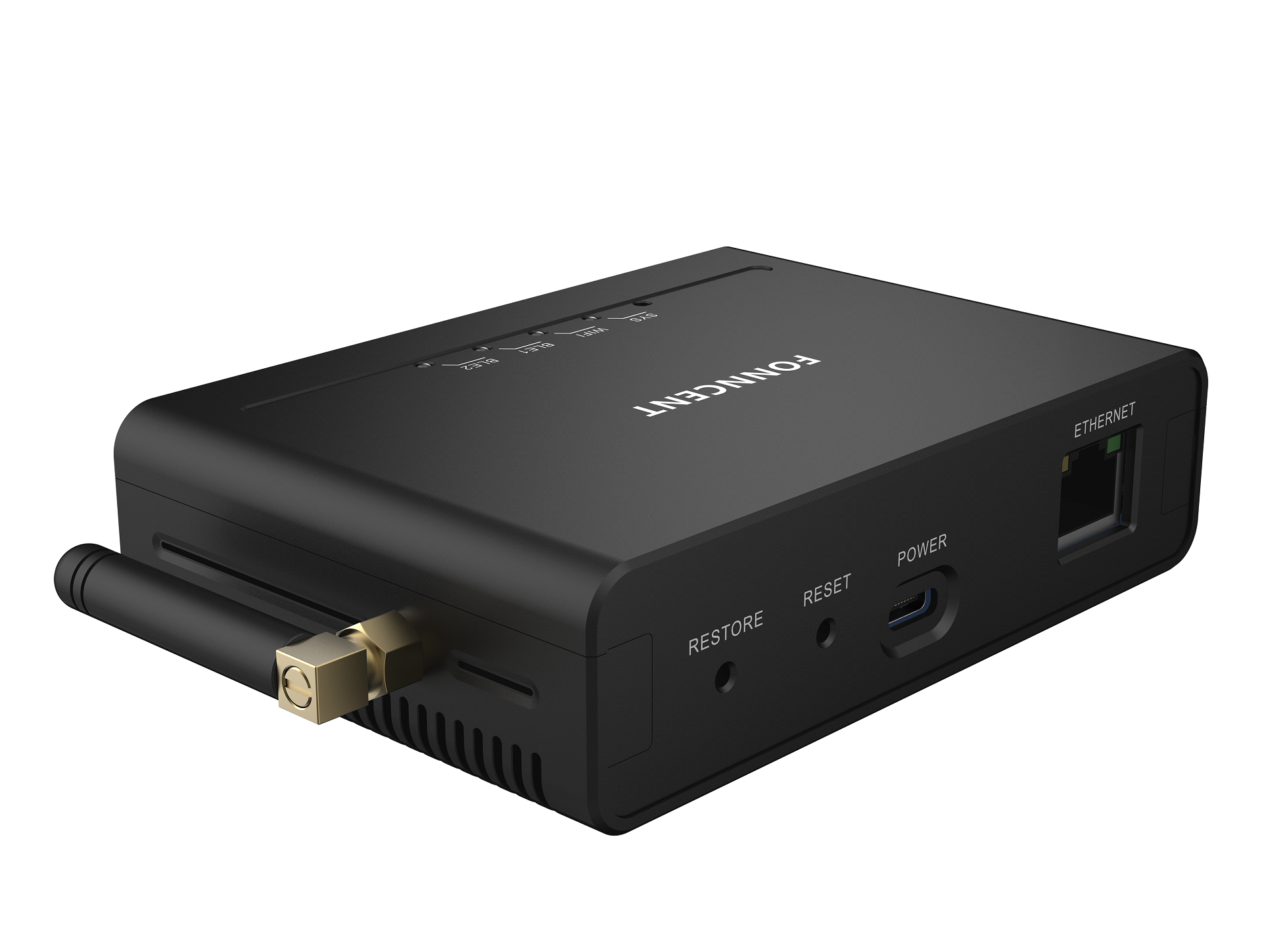

BGA300 is powered by a USB Type-C interface that has electrical characteristics matching many power adapters. It provides multiple user interfaces, four LED indicators to display various working state, and two function Keys to reset the gateway and restore factory configuration. A standard RJ45 ethernet interface is provided as a wired transmission to internet. Specifically, in order to reduce interference and improve reception sensitivity, both WIFI and Bluetooth adopt an external antenna design. It can be placed on the table, mounted on the wall or ceiling with attached accessories.
BGA300 complies with bluetooth version 5.0 protocol and has good interoperability and scalable capacity. It adopts FONNCENT’s self-developed bluetooth protocol stack, supporting to customize features and functions according to customer requirement.
BGA300 WIFI supports 802.11bgn, operates in the 2.4G frequency band, and has good compatibility with various WIFI routers.
BGA300 Ethernet interface complies with the IEEE 802.3/802.3u standard, supports 10M/100M adaptive switching, and can be interconnected with multiple switches. Two LED indicators are available to display link status and transceiver status.
BGA300 provides a WIFI hotspot and local web server, allowing users to initialize, install, and configure the gateway using computers, tablets, and mobile phones.
BGA300 supports to integrate with Bluetooth gateway management platform BCX100. Users can remotely manage and maintain the gateway on the BCX100 platform, including log upload, server certificate download, application software upgrade, and bluetooth firmware upgrade, etc.
BGA300 adopts a flexible architecture and easy-to-use application programming interface (API), which make the gateway easily be integrated into various IoT projects.
BGA300 can be used in a variety of application scenarios such as sensor data collecting, medical device monitoring, personal health checking, smart campus, smart manufacturer, asset tracking etc.
Technical Specification
Power
- DC 5V 2A, USB-C
Bluetooth
- Version: Bluetooth 5.0 protocol
- Frequency: 2.400 to 2.483 GHz
- Supported data rates:
Bluetooth® 5: 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps - Bluetooth RF front-end module (FEM) included
multi mode: bypass mode, normal mode - Reception sensitivity: comply with BQB certification
- Transmit power
bypass mode: -20dBm – +8 dBm, configurable in 4 dB step
normal mode: max +20dBm, configurable - multiple state
advertising, scanning, connection(master, slave)
various combination of status - Advertising
support various advertising mode
support to configure advertising parameters
support to configure advertising data - Scanning
support to configure scan parameters
best performance, up to hundreds of scan reports per second - connection
default max connections: 20 connections simultaneously
support to configure max connections: 1 – 20
support to customize max connections: >20 - Coverage
stable communication range: 0 – 100m
max communication range is related to the testing environment
WIFI
- 802.11b/g/n
- 802.11n (2.4 GHz), up to 150 Mbps
- 0.4us guard time
- TX/RX A-MPDU, RX A-MSDU
- Immediate Block ACK
- Defragmentation
- Simultaneous support for Infrastructure Station and SoftAP mode
Ethernet
- IEEE 802.3/802.3u
- 10Mbps/100Mbps adaptive
- Link status indication: two LEDs（yellow*1，blue*1）
- Multiple power saving mode
Workmode
- Standalone
- Cloud
API
- JSON string data format
- Raw binary data format
Mechnical
- Dimensions: 114 * 80 * 30 (mm)
- Colour: black, white

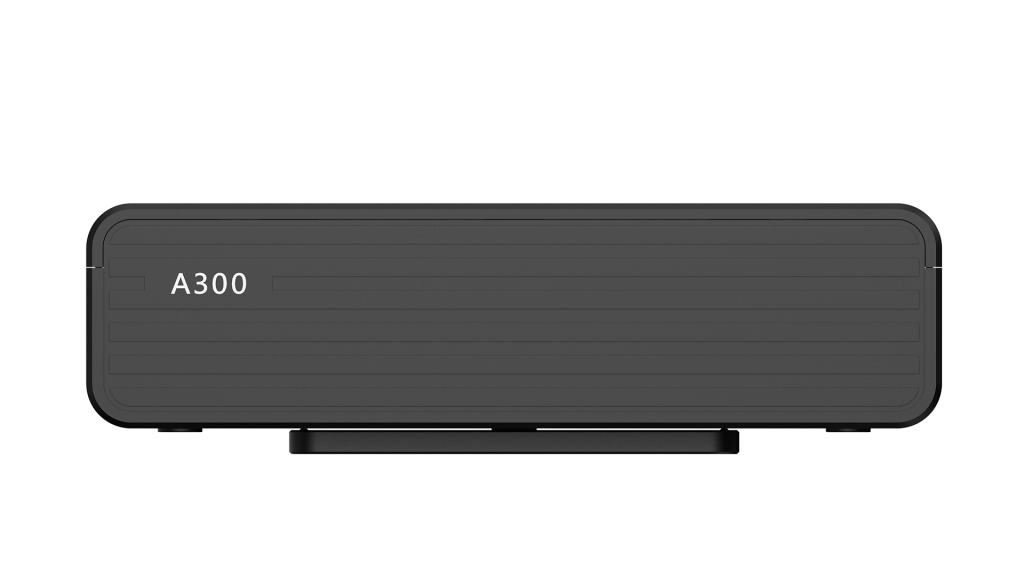

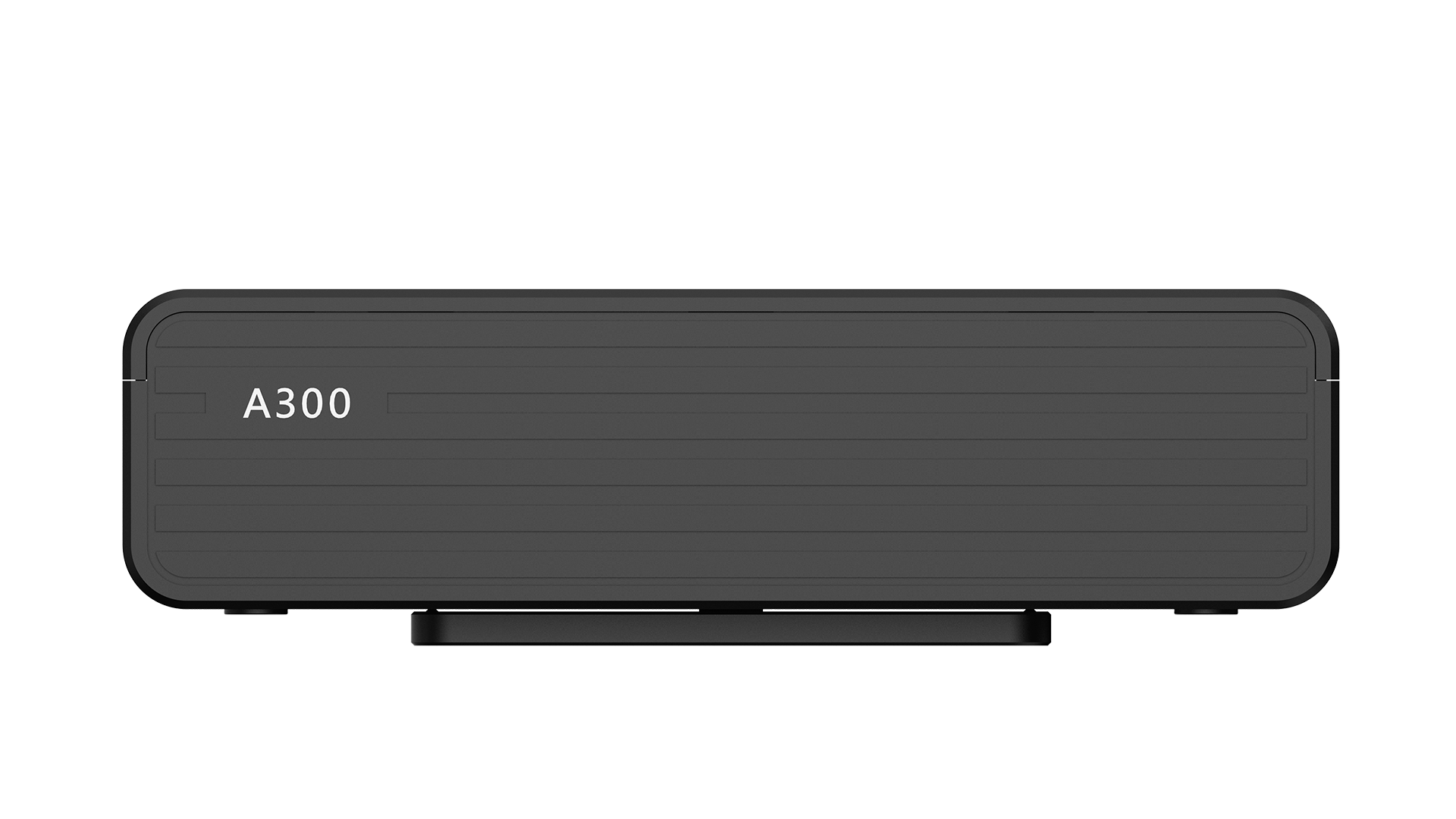

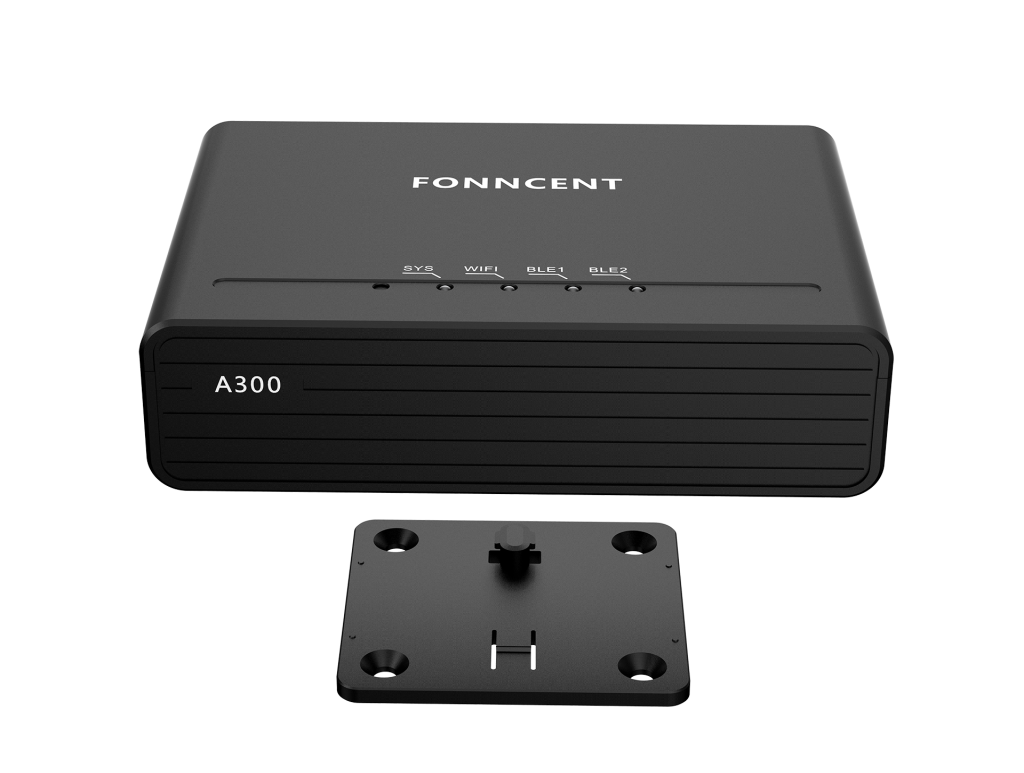

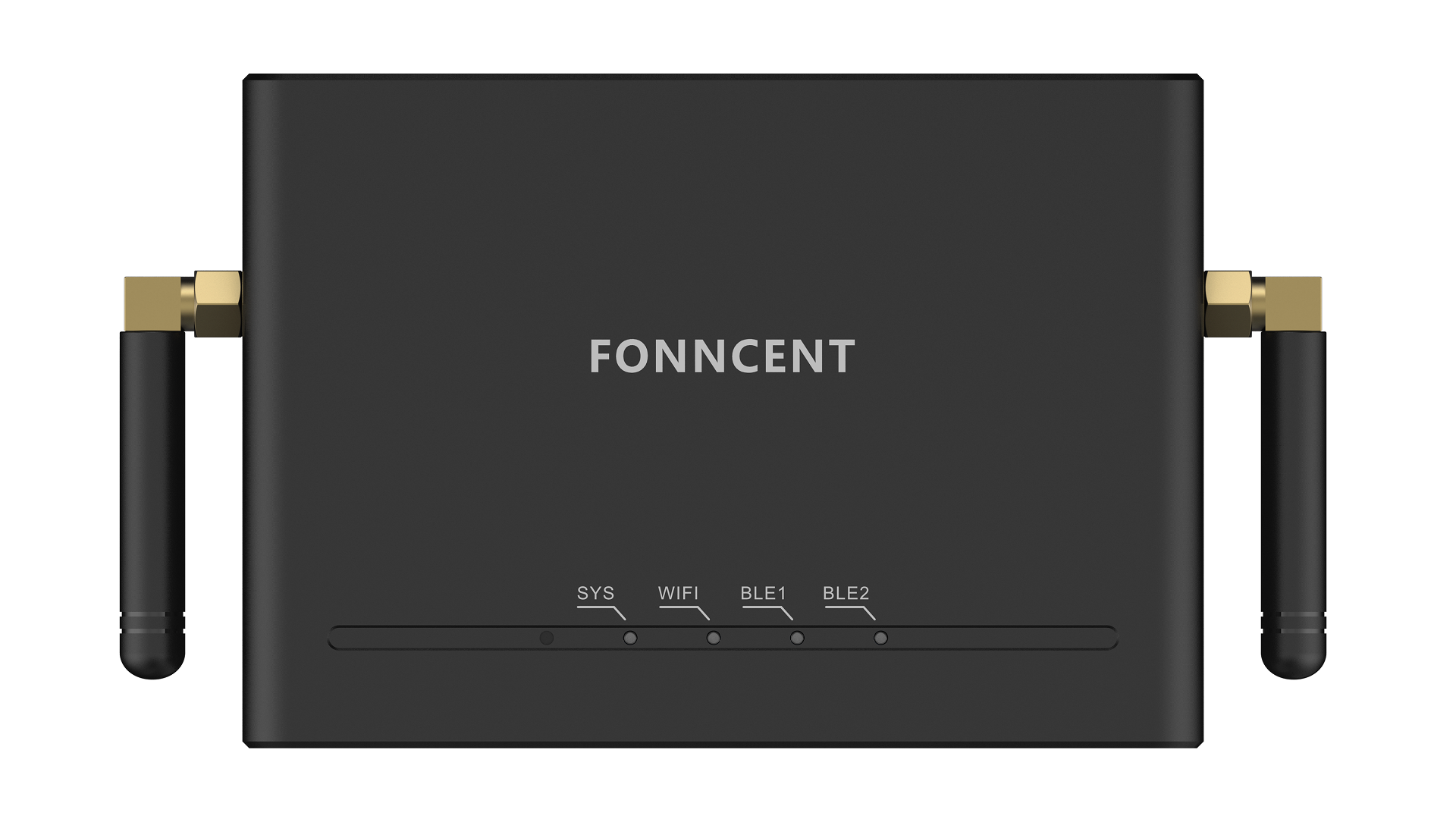

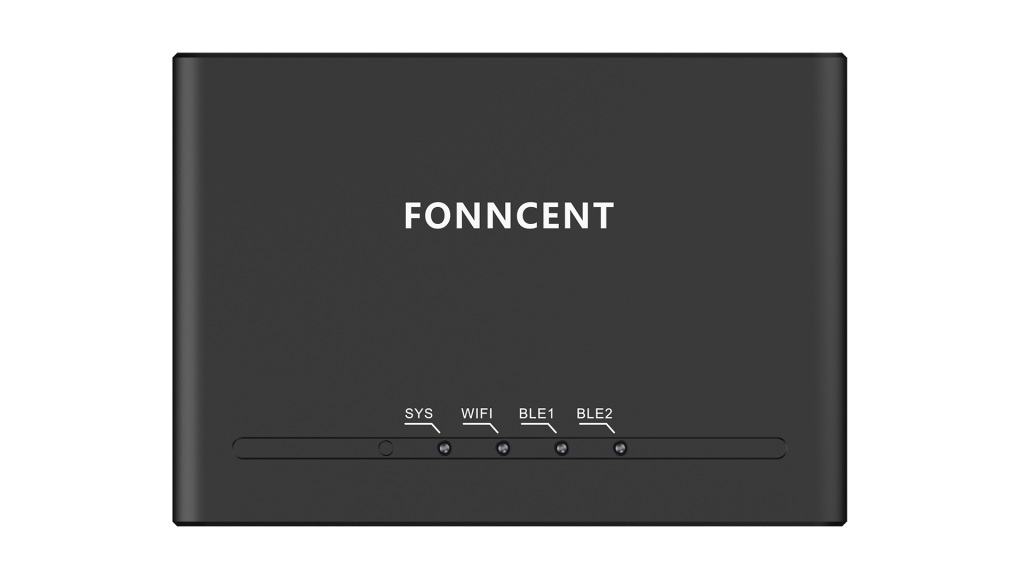

- Four LEDs (green * 2, blue * 2)
- Two function KEYs (RESET, RESTORE)
- Ethernet RJ45 interface
- Two external stick antennas (Bluetooth * 1, WIFI * 1)
- Heat dissipation design
Accessories

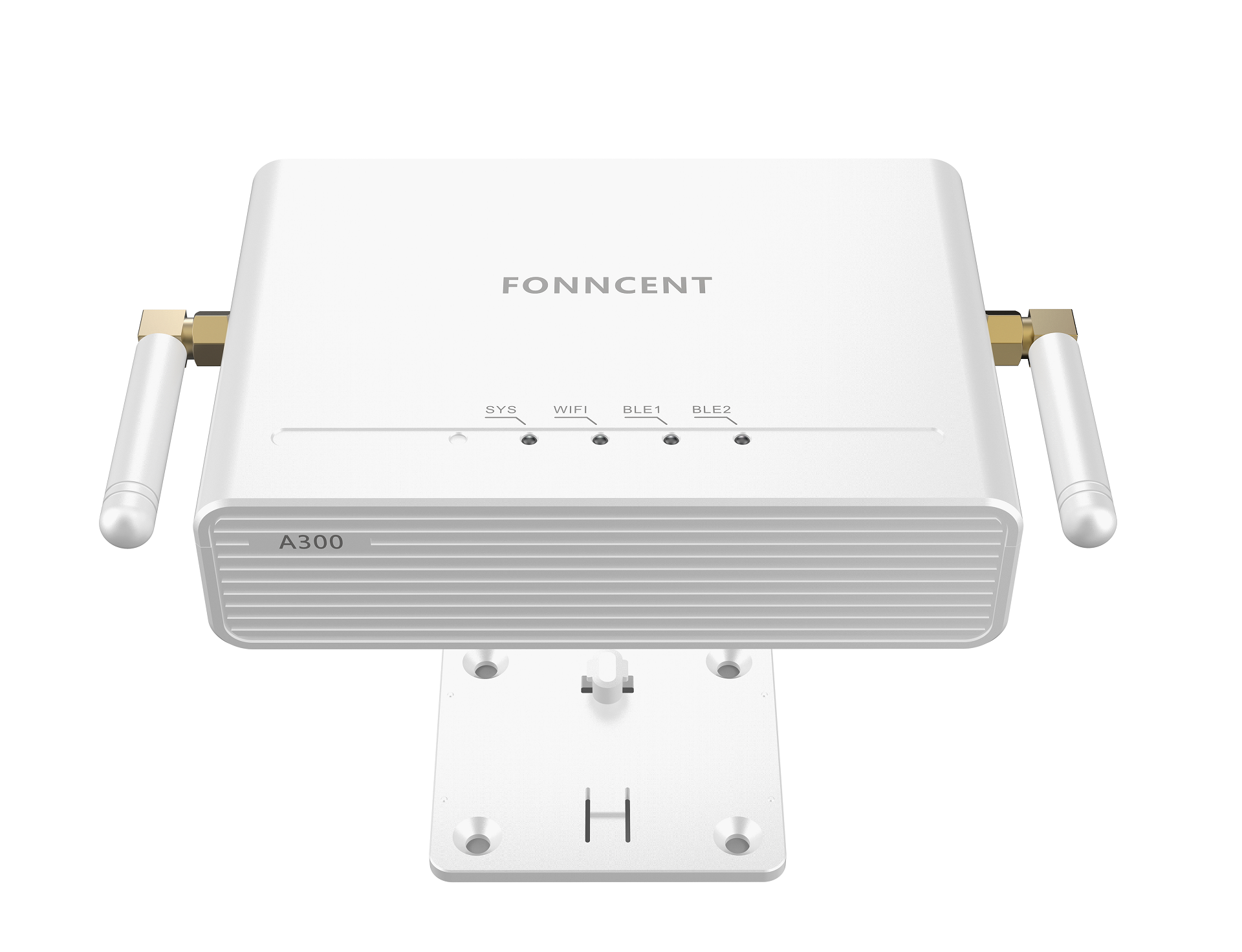

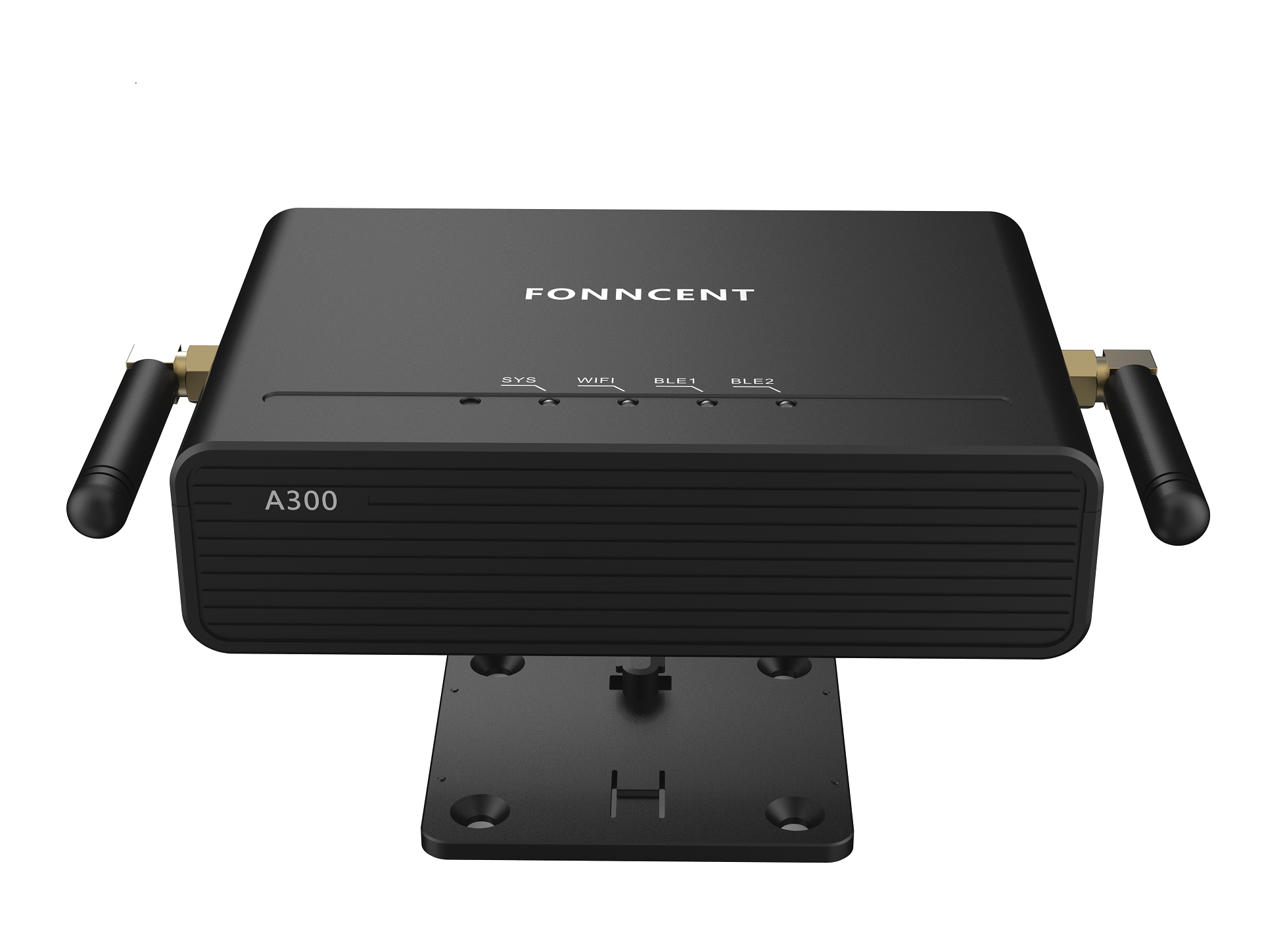

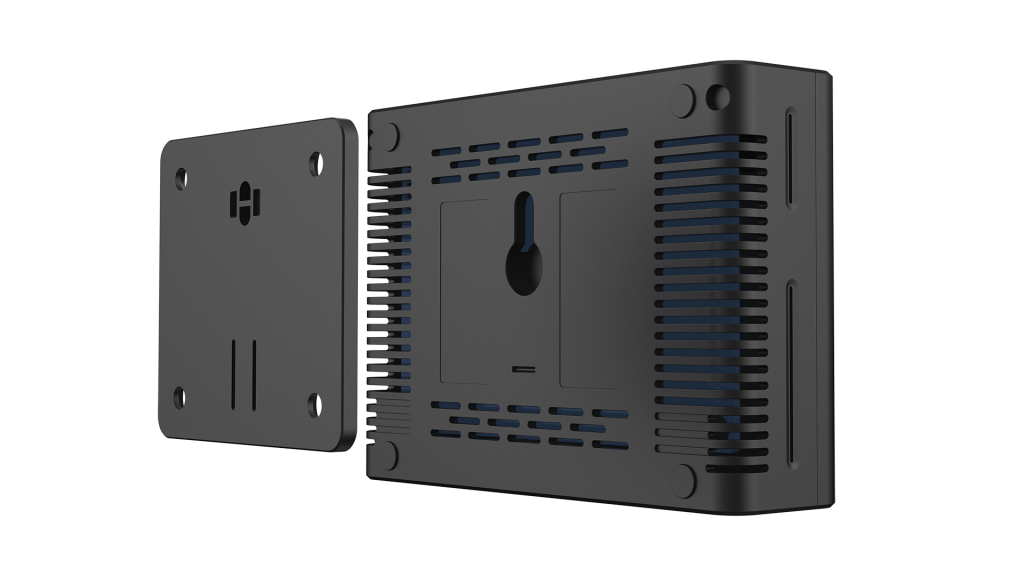

- Mounting kit
Environment
- Operating temperature: -20°C to +70°C
