BGA100 Quick Start Guide
1. Package List
- BGA100 gateway
- USB power adapter
- USB Type-C power cable
- Mounting kit
2. Interface
Top View
Back View

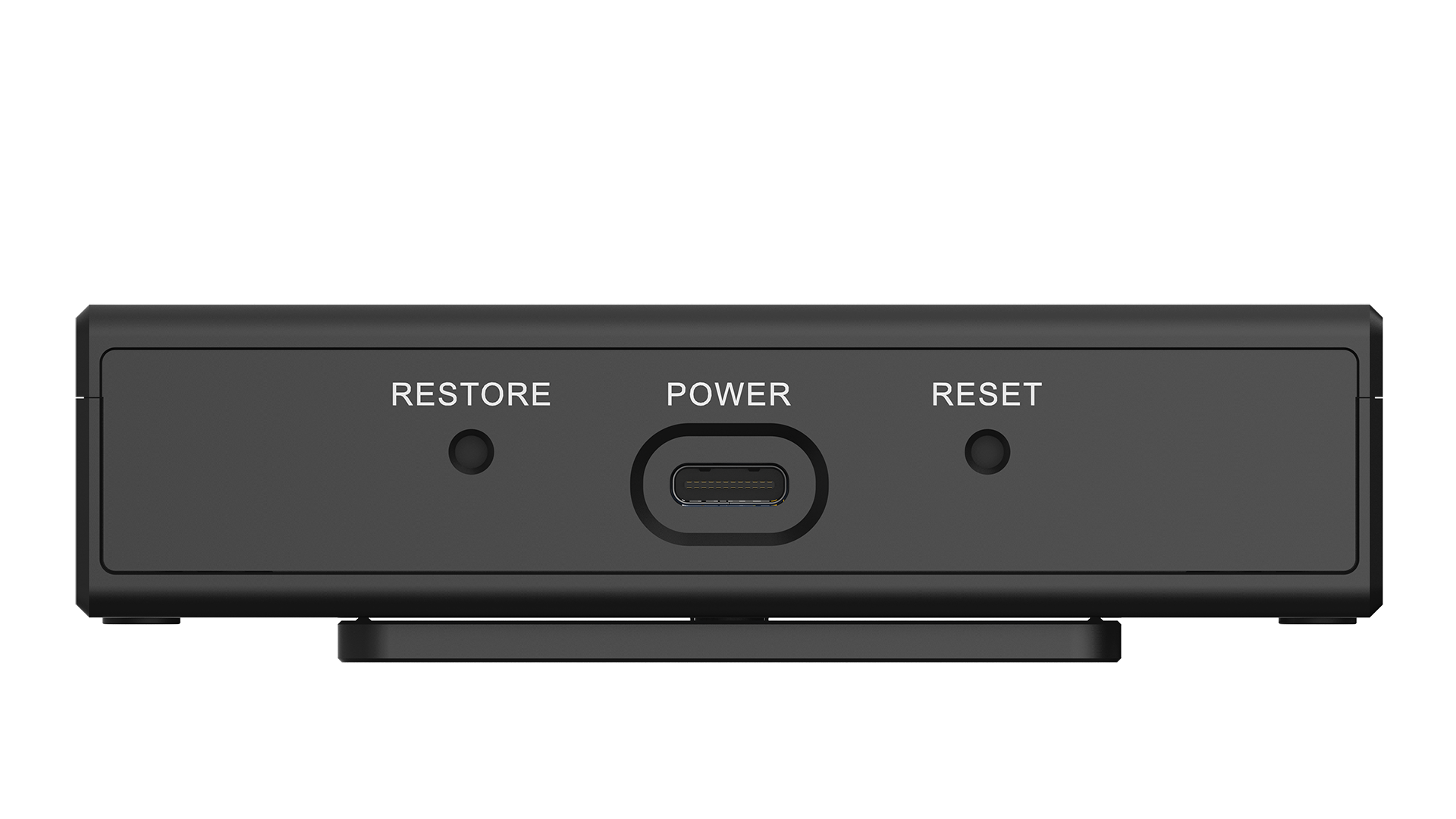

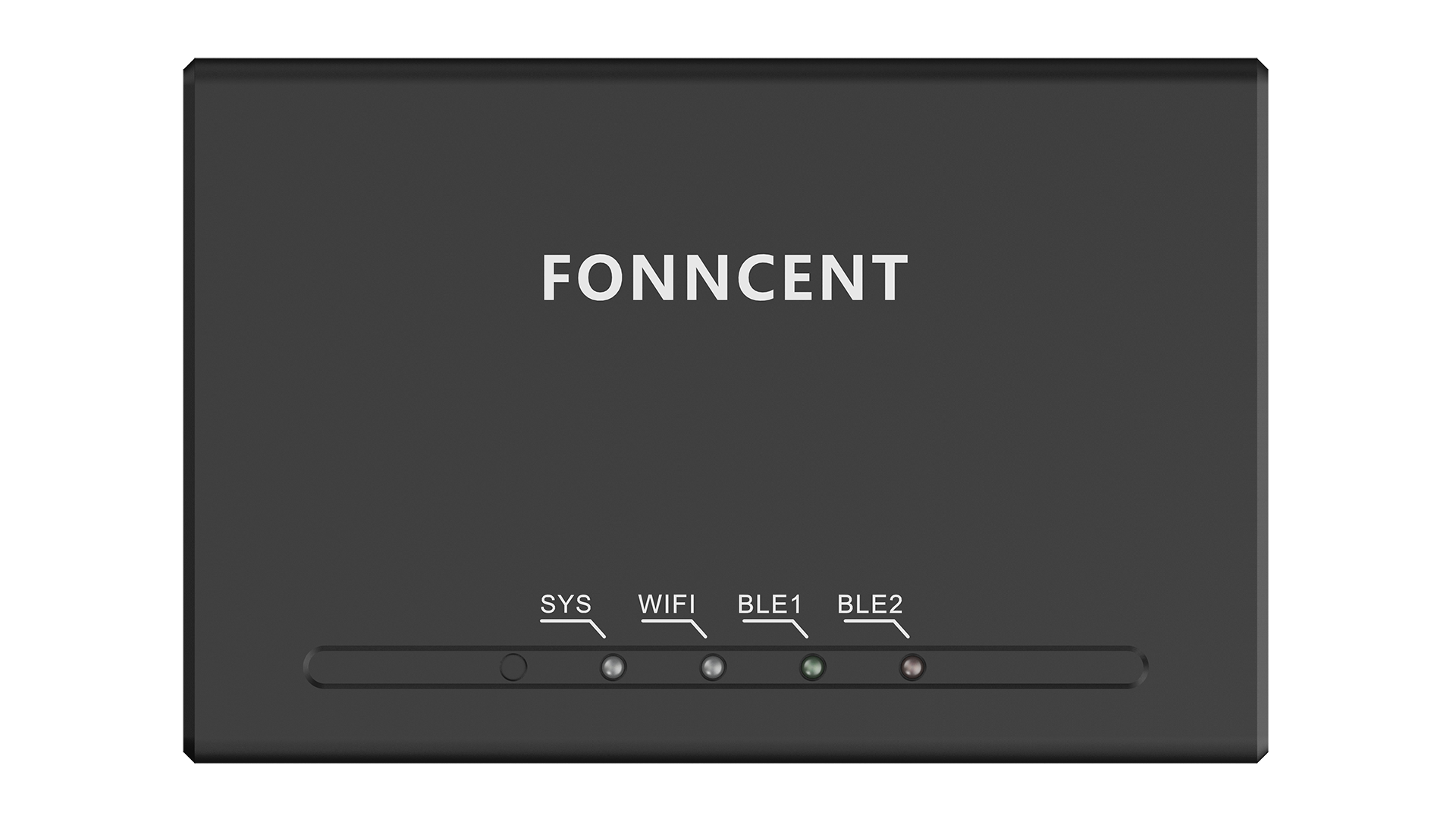

Hardware interface description:
- USB Type-C Power
- RESET Key
- RESTORE Key
- SYS LED, green
- WIFI LED, green
- Bluetooth LED1, blue
- Bluetooth LED2, blue
- Bluetooth Antenna
- WIFI Antenna

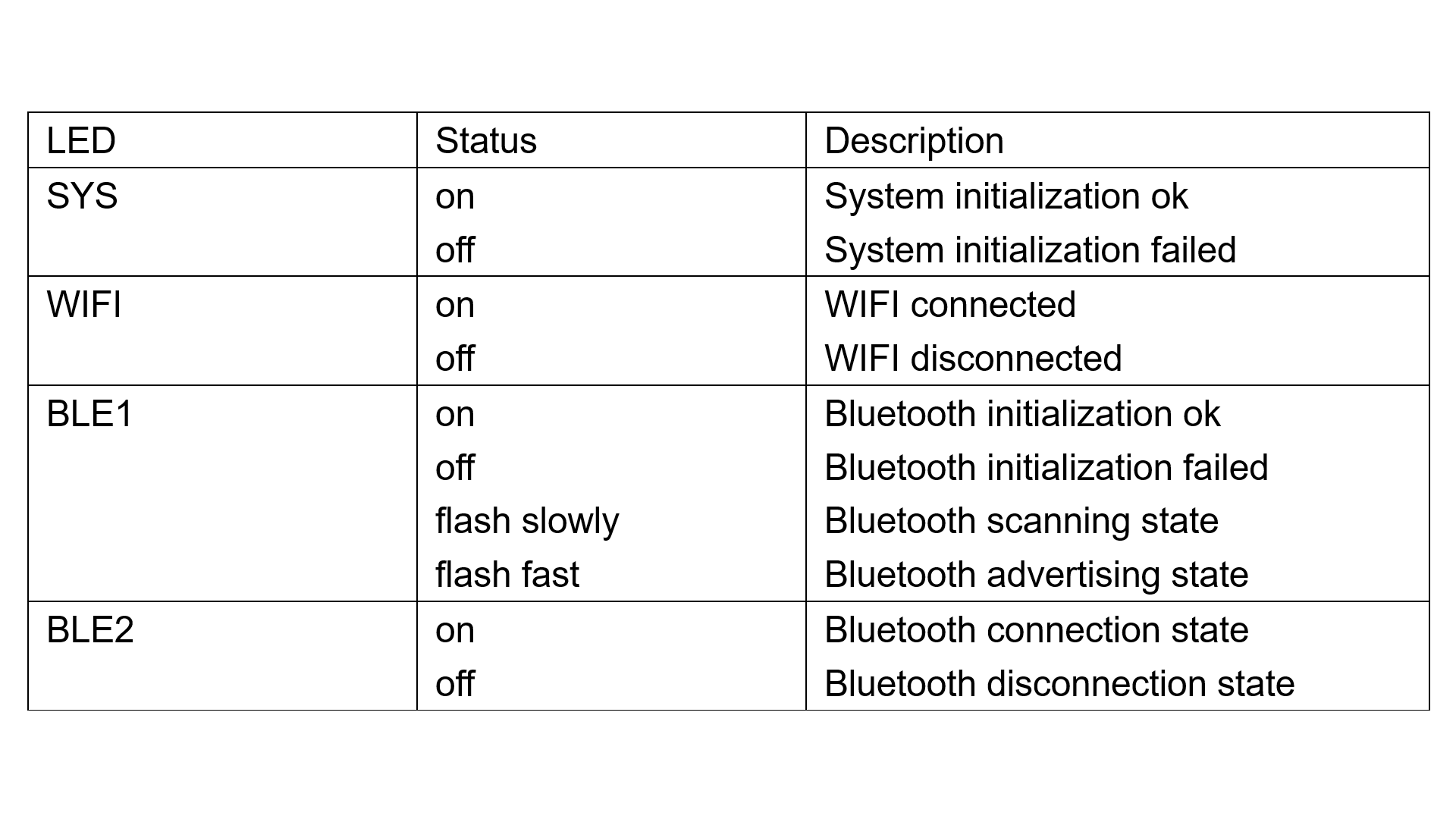

LEDs definition:
LED | Status | Description |
SYS | on off | System init ok System init failed |
WIFI | on off | WIFI connected WIFI unconnected |
BLE1 | on off flash slowly flash fast | Bluetooth init ok Bluetooth init failed scanning state advertising state |
BLE2 | on off | connection state disconnection state |

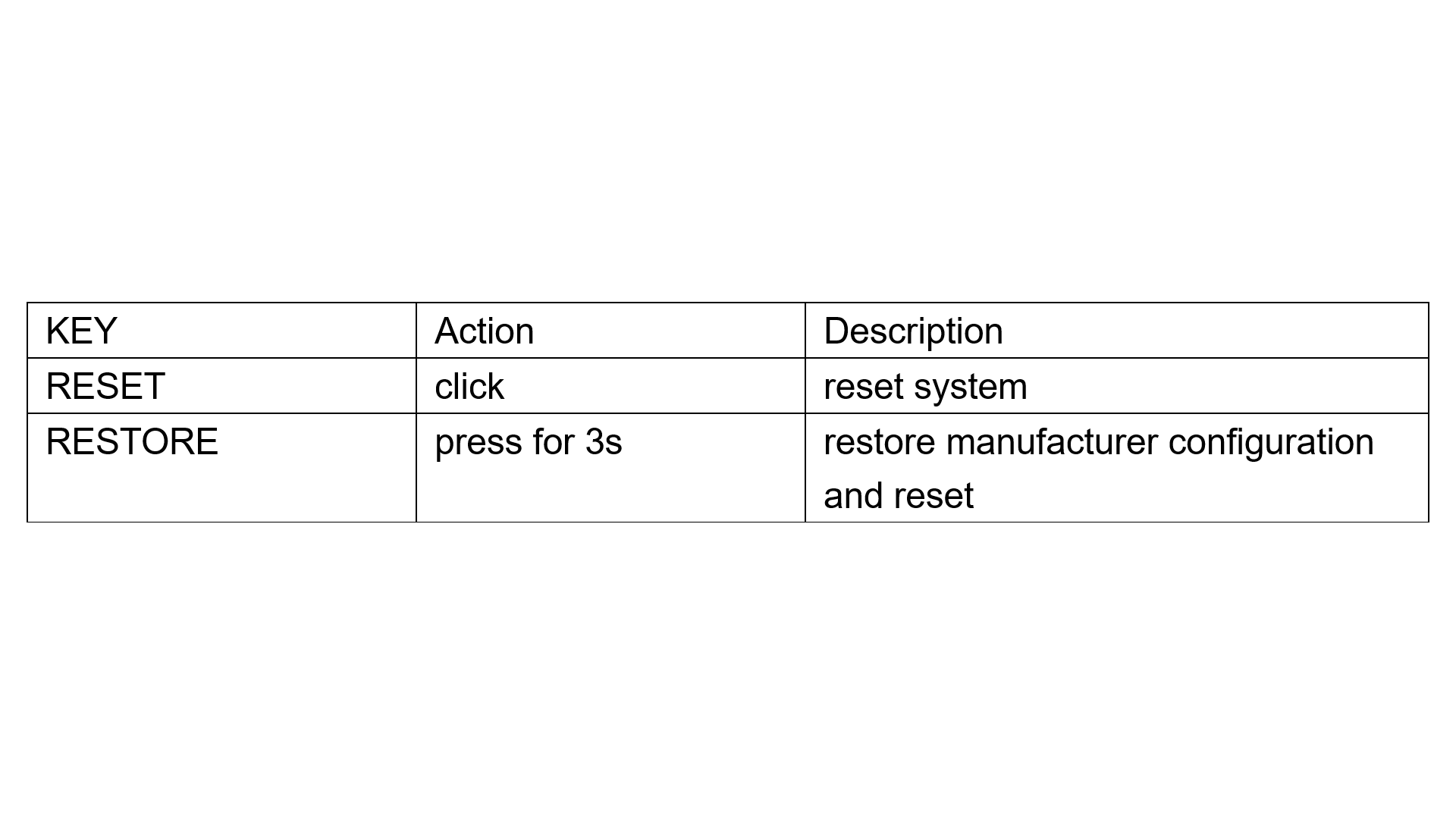

Keys definition:
Key | Action | Description |
RESET | click | reset system |
RESTORE | press on 3s | restore manufacturer configuration and reset |
3. Installation
Front Side
Connected to the gateway
Back Side
Connected to the wall
If the gateway is placed on the desktop, please skip to step 3.3.
If the gateway is installed on the wall or roof,
3.1 Install mounting kit
According to the actual environment, users can choose
- screws
Attach the back side to the wall and use 2-4 screws to secure the kit from the front side
- 3M double-sided adhesive tape
Stick the back side to the wall surface
3.2 Install gateway
Connect the gateway to the front side of the kit
3.3 Plug USB-C power cable
The SYS LED and BLE1 LED will light up, indicating successful initialization of the system and Bluetooth.
4. Setup
BGA100 provides a WIFI hotspot and runs a web server for initial setup. The hotspot SSID is FC-XXXXXX, where XXXXXX is the last 6 hexadecimal digits of gateway MAC, and the password is “12345678”. The server IP address is 192.168.4.1, and the default user account is admin/000000.
- Search the hotspot in your computer, tablet or smartphone and connect to it
- Open a web browser, and login into the server with information above
- Update the default password first, and start to setup the gateway
Please refer to the BGA100 User Guide. - Reset the gateway
5. Test
Test BGA100 with user applications or third party tools.
